Visible / RGB Collimated Laser Head
LZRGB-450-Collimated
450 nm blue, CW 5 - 5.5 W per emitter
450 nm blue collimated laser head for projection, display, industrial lighting and signalling. Blue is the colour that sets white balance in an RGB engine and the one that carries most of the optical power, which is why the sources here are rated at five watts and above, an order of magnitude above the red and green parts.
Estimated range
Range estimates apply to pulsed transmitter parts. This device is specified by its own parameters above.
Every parameter on this page is transcribed from the manufacturer datasheet.
450 nm blue laser diode multi-source summary specification V5.0
| Form | 450 nm blue laser diode, multi transverse mode, TO-CAN / TO90 / LD bank with collimated beam |
|---|---|
| Wavelength range | 430 - 463 nm |
| Rated output | CW 5 - 5.5 W per emitter |
| Operating mode | CW |

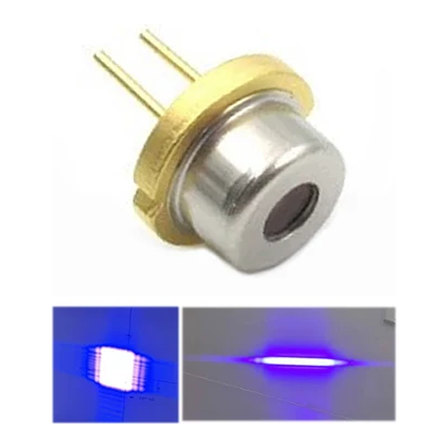

| Package | TO9 / LD bank (8 x LD + collimation) |
| Beam | Collimated; square or line spot after shaping |
| Operating case temperature | 0 to +70 |
| Qualified sources | 4 - Sharp, HiLaser, ams-OSRAM, Nichia |
| Spread across sources | Peak wavelength 430 - 463 nm across sources; threshold 0.24 - 0.37 A; operating current 2.9 - 3.3 A at the rated output. |
| Lifetime | MTTF > 2000 h at Tc = 50 °C and Iop = 2.3 A (GH04C05Y9G); 10000 h typical, 20000 h reference, at 50 % (HiLaserBTV100A). The ams-OSRAM and Nichia sheets in this summary carry no lifetime figure. |
Key features
- CW 5 W to 5.5 W per emitter at 450 nm; the Nichia part is rated per LD inside an 8-emitter bank
- Slope efficiency 1.45 - 2.0 W/A, the highest of the three colours, so a 3 A driver is enough for 5 W of light
- Threshold current 0.24 - 0.37 A; operating voltage 3.5 - 5.3 V
- Fast axis 35 - 57° before shaping - the widest of the three colours - narrowing to 0.65 - 1.05° when the bank is collimated
- Operating case temperature 0 to +70 °C, and storage to +85 °C
- The only one of the three colours the source sheets name for industrial lighting and signalling
This part is used in these application teardowns:
Typical applications
- Laser projector / display
- Industrial lighting, signalling and optical light source
Qualified alternative sources
-
GH04C05Y9GSharpCW 5 W typical (Iop = 2.9 A)TO9
-
HiLaserBTV100AHiLaserCW 5.3 W typical (Iop = 3.0 A)TO90
-
PLPT9 450LC_Eams-OSRAMCW 5.5 W typicalTO90
-
NUBM0FENichia5.4 W typical per LDLD bank (8 x LD + collimation)
Source parameters
One head, several qualified sources. Every figure below is taken from that source’s own summary sheet, written as min / typ / max; a dash means the sheet states no figure.
| GH04C05Y9G | HiLaserBTV100A | PLPT9 450LC_E | NUBM0FE | |
|---|---|---|---|---|
| Rated output | CW 5 W typical | CW 5.3 W typical | CW 5.5 W typical | 5.4 W typical (per LD) |
| Absolute maximum output Po | 5 W | 5.3 W | 5.5 W | 5.4 W |
| Operating case temperature Tc | 0 ~ +60 ℃ | 0 ~ +70 ℃ | 0 ~ +70 ℃ | 0 ~ +70 ℃ |
| Storage temperature Tstg | -40 ~ +85 ℃ | -40 ~ +85 ℃ | -40 ~ +85 ℃ | -40 ~ +85 ℃ |
| Soldering temperature Tsol | 350 C (<= 3 s, 1.6 mm) | 320 C (<= 2 s, >= 2 mm) | 260 C | 320 C (<= 2 s, >= 2 mm) |
| Reverse voltage / current | 2 V | — | 20 mA | 85 mA |
| Threshold current Ith | - / 0.37 / 0.45 A | - / 0.35 / - A | - / 0.32 / 0.45 A | 0.24 / - / 0.44 A (per LD) |
| Operating current Iop | - / 2.9 / 3.49 A (Po = 5 W) | - / 3.0 / 3.5 A | - / 3.3 / - A (Po = 5.5 W) | 3.0 A rated, 3.5 A max (per LD) |
| Operating voltage Vop / Vf | 4.0 / 4.6 / 5.3 V | - / 4.25 / - V | - / 4.1 / 4.8 V | 3.5 / - / 4.7 V (per LD) |
| Slope efficiency η | 1.45 / 2.0 / - W/A | — | — | - / (2.0) / - W/A (per LD) |
| Peak wavelength λp | 430 / 440 / 450 nm | 447 / 455 / 462 nm | 449 / 455 / 463 nm | 448 / (455) / 462 nm (per LD) |
| Divergence θ∥ (parallel) | 4 / 10 / 16° (Po = 3.5 W) | - / 10 / 15° | 6 / 9 / 13° | 0.65 / (0.85) / 1.05° (collimated) |
| Divergence θ⊥ (perpendicular) | 35 / 43 / 53° (Po = 3.5 W) | - / 46 / 52° | 41 / 49 / 57° | -1.0 / (0) / 1.0° (collimated) |
| Square spot divergence θ⊥ | 4 / 10 / 16° | - / 10 / 15° | 6 / 9 / 13° | 6 / 9 / 13° |
| Line spot divergence θ⊥ | 0.8 / 0.9 / 1° | 0.8 / 0.9 / 1° | 0.8 / 0.9 / 1° | 0.8 / 0.9 / 1° |
| Pointing deviation Δθ | ±5 / ±5° | — | — | <= 0.7° (bank) |
| Lifetime / MTTF | MTTF > 2000 h (Tc = 50 C, Iop = 2.3 A) | 10000 h typical (20000 h reference) at 50 %; 1000 h at 1 % | — | — |
