Avalanche Photodiode

LCC2-650APD-230-0.5

650 nm APD, 230 um active area

Visible-wavelength avalanche detector for 650 nm short-range positioning and alignment links.

650 nmWavelength
Request a quote Specifications

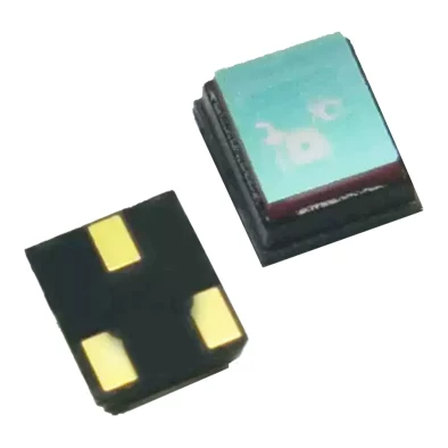

Ceramic LCC avalanche photodiode shown both ways up: the chip under its window on one face, four gold pads on the other
Ceramic LCC package Package photograph. The packaging is shared across this family; the die, its coating and the rating differ by model.

Estimated range

Range estimates apply to pulsed transmitter parts. This device is specified by its own parameters above.

Every parameter on this page is transcribed from the manufacturer datasheet.

LCC2-650APD-230-0.5 specification

Specifications - LCC2-650APD-230-0.5
Response spectrum400 - 1100 nm
Wavelength650 nm
Active diameter230 um
Responsivity80 A/W @ M=100
Response time0.5 ns
Dark current0.4 nA @ M=100
Total capacitance1.0 pF @ M=100
Optimum gain100
Reverse breakdown voltage100 - 200 V
Voltage temp. coefficient1.1 V/C
Optical filter650 nm version
PackageLCC2 ceramic
Operating temperature-40 to +85 C
Storage temperature-55 to +125 C

Key features

  • Responsivity 80 A/W @ M=100
  • Response time 0.5 ns
  • Active diameter 230 um
  • Optimum gain M = 100
  • Breakdown voltage 100 - 200 V
  • Temperature coefficient 1.1 V/C
  • 650 nm version

Typical applications

  • Laser rangefinder receivers
  • LiDAR receive channels
  • Optical time-of-flight measurement
  • Low-light optical detection
